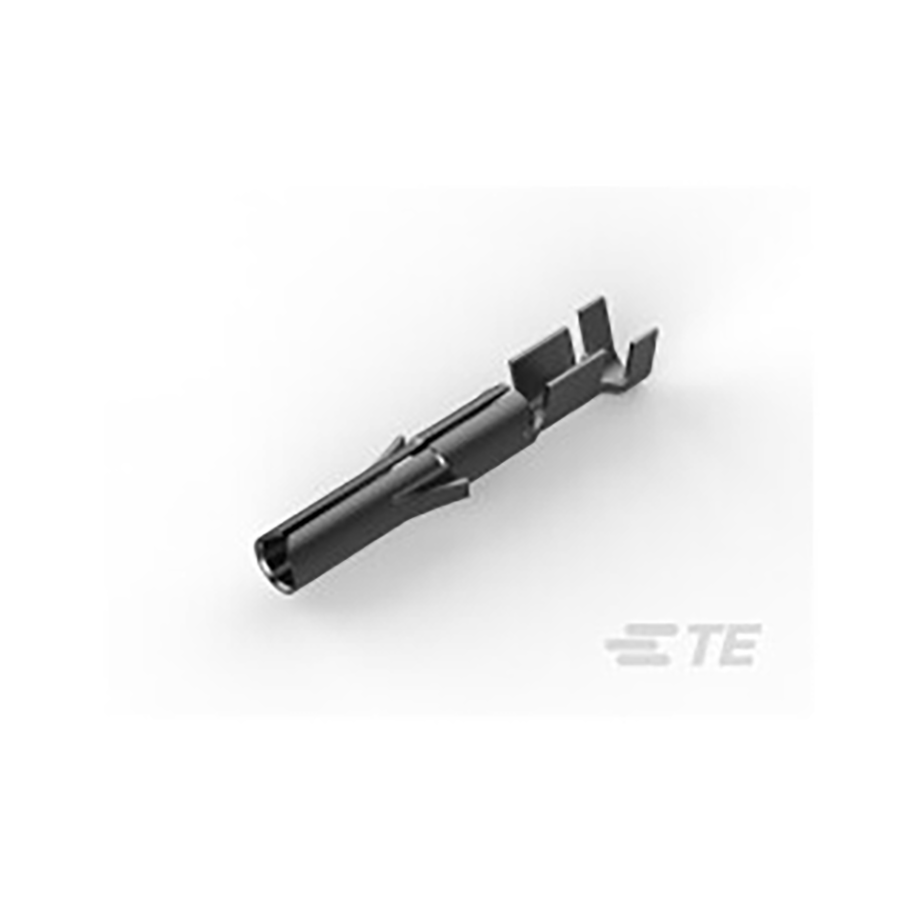

350570-3
Manufacturer:
TE Connectivity
Mfr.Part #:
350570-3
Datasheet:
Description:
IC and Component Sockets Cable, Socket Socket Number of Positions:1
| Parameter | Value |
|---|---|
| Length | 19.3 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 3.55 mm |
| Packaging | Reel |
| Voltage Rating | 600 V |
| Depth | 3.55 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Number of Terminals | 1 |
| Current Rating | 19 A |
| Max Current Rating | 19 A |
| Approvals | UL |
| Orientation | Straight |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Socket (Female) |
| Shielding | Unshielded |
| ELV | Compliant |
| Connector Type | Socket |
| Wire/Cable Gauge | 24 AWG to 18 AWG |
| Number of Positions | 1 |
| Wire/Cable Type | Discrete |
| Number of Ports | 1 |
| Circuit Application | Power |
| Connector System | Wire-to-Wire |
| Contact Style | Socket |
| Max Voltage Rating (AC) | 600 V |
| Contact Current Rating | 19 A |
| Wire Gauge (Max) | 24 AWG |
| Wire Gauge (Min) | 18 AWG |
| Insulation Diameter | 2.54 mm |
| Contact Gender | Female |
| VDE Tested | Yes |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Contact Retention | With |
| Termination Style | Crimp |
Stock: 8405
Distributors
pcbx
pcbxUnit Price$0.17082
Ext.Price$0.17082
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.17082 | $0.17082 |
| 10 | $0.08541 | $0.85410 |
| 50 | $0.06570 | $3.28500 |
| 100 | $0.05054 | $5.05400 |
| 500 | $0.04613 | $23.06500 |
| 1000 | $0.04210 | $42.10000 |
| 3000 | $0.03822 | $114.66000 |
| 5000 | $0.03693 | $184.65000 |
| 10000 | $0.03568 | $356.80000 |
| 30000 | $0.03447 | $1034.10000 |
| 50000 | $0.03330 | $1665.00000 |
| 100000 | $0.03217 | $3217.00000 |
| 150000 | $0.03109 | $4663.50000 |
